Techno EPDM Membranes

Here at Avenir, we offer Techno EPDM. This is a single ply roofing system designed especially for the waterproofing of commercial and residential flat roof applications.

This system comprises membranes with a selected set of accessories which provide an outstanding lifespan, ease of application, flame and heat-free installation, superior durability and a low life-cycle cost.

The EPDM we stock is highly flexible, elongated and environmentally friendly. At Avenir, we are known as leading suppliers in EPDM membranes. With two Techno EPDM membranes to choose from that are incredibly reliable and high-quality, we have supplied Techno EPDM membranes for the last 25 years. Techno EPDM membranes are also available for roofing applications such as:

  • Flame free installation
  • Superior flexibility
  • Exceptional durability
  • Lightweight material
  • Eco friendly
  • Little to no maintenance
  • Life expectancy up to 50 years
  • 20 year warranty

Benefits of Techno EPDM Membranes

The Techno system offers a unique combination of features and benefits, making it a top choice for flat roofing material across the world. Techno membranes benefits include;

  • Flame free application
  • Simple and easy to install
  • Little to no maintenance
  • Life expectancy up to 50 years
  • Lightweight material
  • Highly flexible
  • Eco-friendly

We offer two membrane thicknesses: 1.14mm & 1.52mm, we can supply whole rolls, merchant friendly stock rolls and can even cut to the size of your roof.

Techno

Laying Membrane

A how-to guide to laying our Techno EPDM membrane.

Edge Trim

A how-to guide to installing edge trims to a Techno EPDM flat roof.

Gutter Trim

A how-to guide to installing gutter trims to a Techno EPDM flat roof.

External Edge Corner

A how-to guide to installing an external edge corner.

Wall Trim Flashing

A how-to guide to installing a wall trim flashing.

Under Tiles

A how-to guide to installing Techno EPDM membrane under tiles.

Onto Tiles

A how-to guide to installing Techno EPDM membrane onto tiles.

External Corner

A how-to guide to installing an external corner.

Internal Corner

A how-to guide to installing an internal corner.

Pipeseal

A how-to guide to installing a Pipeseal.

Seam / Join

A how-to guide to creating a seam join after splicing two or more pieces of Techno EPDM membrane.

Rainwater Outlet

A how-to guide to installing a rainwater outlet.

Horizontal Rainwater Outlet

A how-to guide to installing a horizontal rainwater outlet.

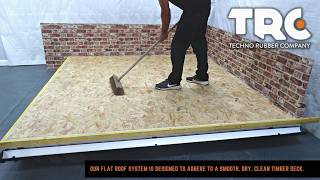

Preparing a roof for Techno EPDM roof covering

This video will show you how the roof should be prepared before laying EPDM membrane.

How to lay a Techno EPDM membrane

This video will show you how to correctly apply adhesive and lay EPDM membrane.

How to fit gutter trims to Techno EPDM flat roofs

This video will show you how to successfully fit edge trims to a Techno EPDM flat roof.

How to do an external corner

This video will show you how to install external gutter corners, covering the preparation, positioning and marking.

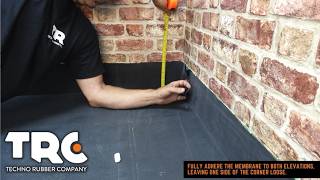

How to do an internal corner

This video will show you how to adhere internal corners to a Techno EPDM flat roof.

How to fit a Techno Pipeseal

This video will show you how to fit a Techno pipe seal to an EPDM flat roof.

How to fit a roof outlet to a Techno EPDM flat roof

This video will show you how to fit a rainwater outlet for the most professional finish.

How to fit a Horizontal thru wall outlet to a Techno EPDM rubber roof

This video will show you how to mark up the through wall outlet area, apply an outlet kit, prime and roller.

How to join two pieces of Techno EPDM membrane (splicing/joining)

This video will show you how to join two pieces of Techno EPDM membrane for a professional finish.

How to lay Techno EPDM around a skylight

This video will show you how to lay Techno EPDM membrane around a skylight, including how to properly markup, and ensure a tight bond with contact adhesive.

How to seal a Techno EPDM roof under tiles or slates

This video will show you how to fix EPDM under slates or tiles to achieve a watertight finish.

What is Techno EPDM membrane?

EPDM means ethylene propylene diene monomer. It is a synthetic rubber, with outstanding weatherproof properties, developed over 20 years ago.

How long does it take to install?

The average (20m2) rear extension should only take a morning to install. Getting the roof stripped off and any decking replaced if needed usually takes longer than installing the Techno EPDM.

Which substrates are suitable for Techno EPDM?

Water-based adhesive is to be used on timber substrates. Contact adhesive (solvent-based) can be used on most other substrates but not foam insulation boards.

Can I use Techno EPDM on top of insulation boards to create a warm roof?

We recommend a ply faced insulation board, for example, Kingspan TR31 or similar. Alternatively, you can insulate on top of the decking with foil-faced boards, then overboard with OSB or plywood, secured with long screws.

Can I adhere Techno EPDM directly to felt, fibreglass, asphalt or concrete?

Our contact adhesive can be used for this type of application but, unlike our water-based glue, this is quite tricky to do on large areas. We strongly recommend over boarding roofs with a minimum of 12mm ply or OSB and using water-based glue.

Can Techno EPDM membrane be adhered to a wet surface?

No.

Ponded water, snow, frost and ice must be removed from the roof surface before installation of the membrane. Water-based adhesives can be applied to a damp substrate.

Can I walk on a Techno EPDM roof?

The roof can be accessed for periodical maintenance.

Is there a warranty for Techno EPDM membrane?

We provide a 20-year membrane warranty.

Can the Techno EPDM membrane be ballasted?

Yes, it is possible to cover the membrane with gravel pavers but the membrane must always adhere to the substrate. TRC recommends the use of a protective geotextile (polyester 300 g/m²) between the membrane and the ballast.

Are any precautions required during installation?

Techno Adhesive and Techno Primer can only be used in well-ventilated areas. Both products must be kept away from ignition sources. Do not smoke when using. We recommend wearing gloves when applying Techno Primer. For further information, please consult the Safety Data Sheets and/or the information shown on the product labels.

Can Techno EPDM membrane be in contact with a hot pipe penetration (e.g. chimney)?

The use of double-walled penetrations is required.

Which products require the application of Techno Primer?

Techno primer must be used with ALL TRC products to clean and prime the membrane before application of the primer products.

Must the membrane be cleaned before applying Techno Primer?

No, except when the membrane is extremely dirty, in which case it must be cleaned with water and a clean rag.

What is the coverage rate of Techno Contact Adhesive?

The coverage rate is 1 litre per 2 m² (two-sided).

Is the use of Techno Contact Adhesive weather dependent?

Yes.

The minimum temperature required for application of Techno Contact Adhesive is + 5°C and the maximum humidity is 80 %.

Must the roof surface be cleaned before adhesion of Techno EPDM?

The surface must be clean, smooth, dry, and free of sharp and/or loose objects and/or foreign materials such as oil, grease, and/or other contaminants. Therefore, it is recommended to sweep the substrate with a brush before the installation of the membrane.



Is Techno EPDM membrane available in different colours?

No.

The membrane is only available in black.

Can Techno EPDM be repaired?

Yes.

The membrane can be easily repaired with a piece of Techno Flashing Tape.

Can certain materials damage Techno EPDM?

Yes.

Contact with mineral and vegetable oils, petroleum-based products, fresh bitumen, and grease should be avoided.

Is maintenance required?

No specific maintenance is required for a Techno EPDM roofing system. However, TRC recommends a yearly inspection of the roof.

How long will Techno EPDM membrane last?

Techno EPDM membranes offer unmatched resistance to UV radiation, ozone, alkaline rains and high or low temperatures. Recent studies show that the membrane has a life expectancy of more than 50 years.

Does Techno EPDM membrane require a protective topcoat?

No, the Techno EPDM membrane is resistant to UV and ozone.

Does Techno EPDM Membrane have an up and underside?

No, there is no difference between the top and bottom of the membrane.

Is Techno EPDM environmentally friendly?

Yes.

EPDM is an inert material with limited environmental impact during both the manufacture and installation process.

Can Techno EPDM be combined with a Green Roof System?

Sedum vegetation can be placed over the Techno EPDM membrane, provided that a root resistant geotextile is used between the vegetation and the membrane. A distance of 30cm must be taken into account between the vegetation and every roof installation detail.
